PAR-032X90DA-09F0300

Double Acting

32

8,7 Nm

9 mm

F03

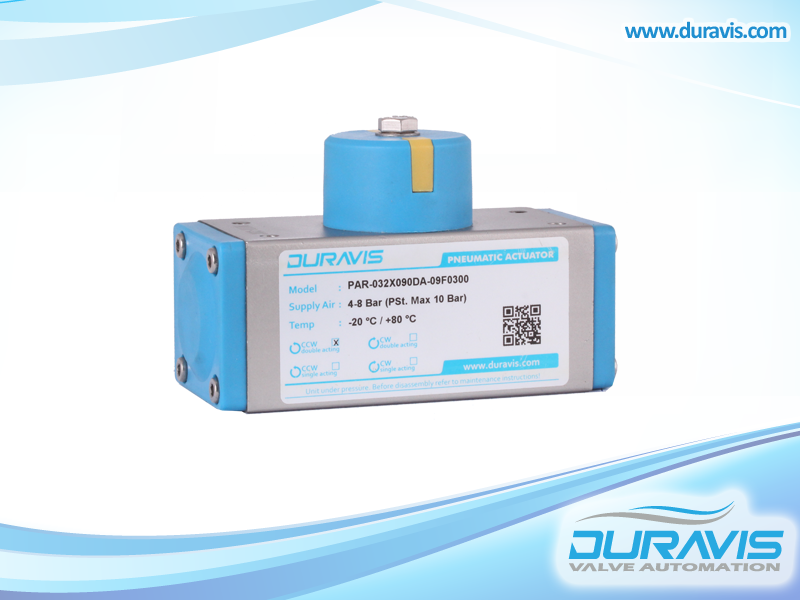

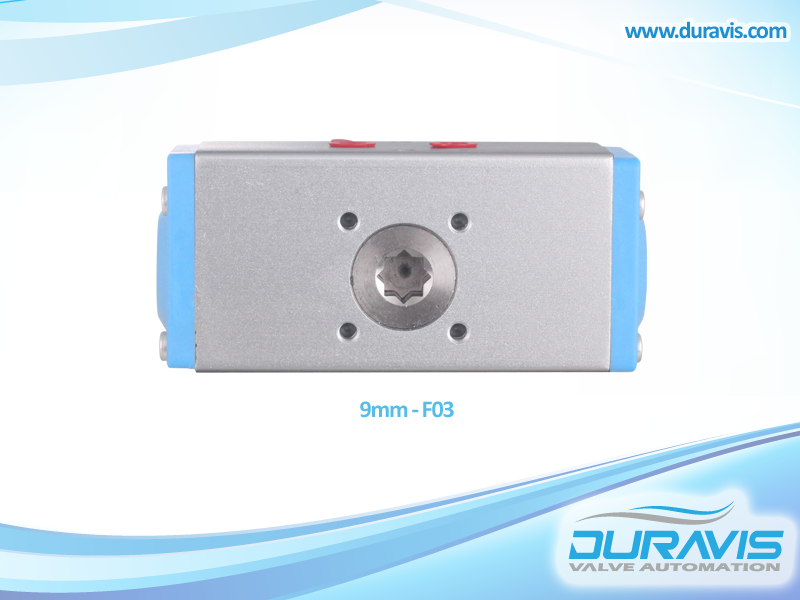

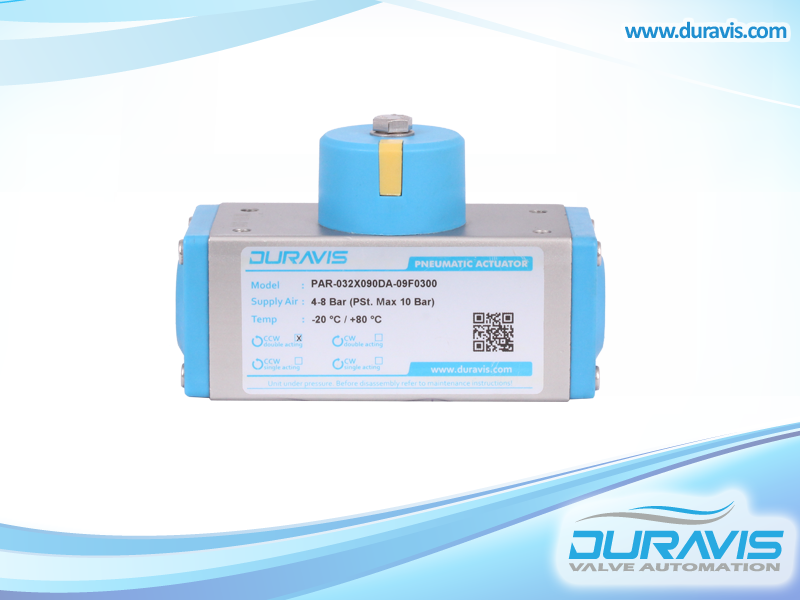

Duravis PAR-032X90DA Double Acting Rotary Actuator   Product Code : PAR-032X90DA-09F0300 Function : Double Acting Aktüatör Ölçü : 32 Torque (at 6 bar) : 8,7 Nm Shaft Square : 9 mm Flange Connection : F03

PAR-050X90DA-11F0305

Double Acting

50

20 Nm

11 mm

F03/05

Duravis PAR-050X90DA Double Acting Rotary Actuator   Product Code : PAR-050X90DA-11F0305 Function : Double Acting Aktüatör Ölçü : 50 Torque (at 6 bar) : 20 Nm Shaft Square : 11 mm Flange Connection : F03/05

PAR-063X90DA-14F0305

Double Acting

63

35,3 Nm

14 mm

F03/05

Duravis PAR-063X90DA Double Acting Rotary Actuator   Product Code : PAR-063X90DA-14F0305 Function : Double Acting Aktüatör Ölçü : 63 Torque (at 6 bar) : 35,3 Nm Shaft Square : 14 mm Flange Connection : F03/05

PAR-075X90DA-17F0507

Double Acting

75

69,9 Nm

17 mm

F05/07

Duravis PAR-075X90DA Double Acting Rotary Actuator   Product Code : PAR-075X90DA-17F0507 Function : Double Acting Aktüatör Ölçü : 75 Torque (at 6 bar) : 69,9 Nm Shaft Square : 17 mm Flange Connection : F05/07

PAR-088X90DA-17F0507

Double Acting

88

110,1 Nm

17 mm

F05/07

Duravis PAR-088X90DA Double Acting Rotary Actuator   Product Code : PAR-088X90DA-17F0507 Function : Double Acting Aktüatör Ölçü : 88 Torque (at 6 bar) : 110,1 Nm Shaft Square : 17 mm Flange Connection : F05/07

PAR-100X90DA-17F0710

Double Acting

100

160,3 Nm

17 mm

F07/10

Duravis PAR-100X90DA Double Acting Rotary Actuator   Product Code : PAR-100X90DA-17F0710 Function : Double Acting Aktüatör Ölçü : 100 Torque (at 6 bar) : 160,3 Nm Shaft Square : 17 mm Flange Connection : F07/10

PAR-115X90DA-22F0710

Double Acting

115

258 Nm

22 mm

F07/10

Duravis PAR-115X90DA Double Acting Rotary Actuator   Product Code : PAR-115X90DA-22F0710 Function : Double Acting Aktüatör Ölçü : 115 Torque (at 6 bar) : 258 Nm Shaft Square : 22 mm Flange Connection : F07/10

PAR-125X90DA-27F0710

Double Acting

125

333 Nm

27 mm

F07/10

Duravis PAR-125X90DA Double Acting Rotary Actuator   Product Code : PAR-125X90DA-27F0710 Function : Double Acting Aktüatör Ölçü : 125 Torque (at 6 bar) : 333 Nm Shaft Square : 27 mm Flange Connection : F07/10

PAR-145X90DA-27F1012

Double Acting

145

521 Nm

27 mm

F10/12

Duravis PAR-145X90DA Double Acting Rotary Actuator   Product Code : PAR-145X90DA-27F1012 Function : Double Acting Aktüatör Ölçü : 145 Torque (at 6 bar) : 521 Nm Shaft Square : 27 mm Flange Connection : F10/12

PAR-160X90DA-27F1012

Double Acting

160

682 Nm

27 mm

F10/12

Duravis PAR-160X90DA Double Acting Rotary Actuator   Product Code : PAR-160X90DA-27F1012 Function : Double Acting Aktüatör Ölçü : 160 Torque (at 6 bar) : 682 Nm Shaft Square : 27 mm Flange Connection : F10/12

PAR-190X90DA-36F1012

Double Acting

190

1277 Nm

36 mm

F10/12

Duravis PAR-190X90DA Double Acting Rotary Actuator   Product Code : PAR-190X90DA-36F1012 Function : Double Acting Aktüatör Ölçü : 190 Torque (at 6 bar) : 1277 Nm Shaft Square : 36 mm Flange Connection : F10/12

PAR-210X90DA-36F1400

Double Acting

210

1758 Nm

36 mm

F14

Duravis PAR-210X90DA Double Acting Rotary Actuator   Product Code : PAR-210X90DA-36F1400 Function : Double Acting Aktüatör Ölçü : 210 Torque (at 6 bar) : 1758 Nm Shaft Square : 36 mm Flange Connection : F14

PAR-240X90DA-46F1600

Double Acting

240

2144 Nm

46 mm

F16

Duravis PAR-240X90DA Double Acting Rotary Actuator   Product Code : PAR-240X90DA-46F1600 Function : Double Acting Aktüatör Ölçü : 240 Torque (at 6 bar) : 2144 Nm Shaft Square : 46 mm Flange Connection : F16

PAR-270X90DA-46F1600

Double Acting

270

3121 Nm

46 mm

F16

Duravis PAR-270X90DA Double Acting Rotary Actuator   Product Code : PAR-270X90DA-46F1600 Function : Double Acting Aktüatör Ölçü : 270 Torque (at 6 bar) : 3121 Nm Shaft Square : 46 mm Flange Connection : F16

PAR-300X90DA-46F1600

Double Acting

300

4477 Nm

46 mm

F16

Duravis PAR-300X90DA Double Acting Rotary Actuator   Product Code : PAR-300X90DA-46F1600 Function : Double Acting Aktüatör Ölçü : 300 Torque (at 6 bar) : 4477 Nm Shaft Square : 46 mm Flange Connection : F16

PAR-350X90DA-46F1625

Double Acting

350

7620 Nm

46 mm

F16/25

Duravis PAR-350X90DA Double Acting Rotary Actuator   Product Code : PAR-350X90DA-46F1625 Function : Double Acting Aktüatör Ölçü : 350 Torque (at 6 bar) : 7620 Nm Shaft Square : 46 mm Flange Connection : F16/25
